Designed to endure.
Verified to perform.
Built to protect your brand.

Four engineering priorities, presented clearly and backed by recorded validation.

PRODUCT DESIGN

Protection before performance claims.

01Heat ResistanceThermal design and component selection reduce heat stress in demanding ambient temperatures.60°CTESTED TO＋
HIGH-TEMPERATURE VALIDATION

Stable operation recorded through 60°C

APS6500 IP43 comparative aging data records stable output at every test point from 25°C to 60°C.

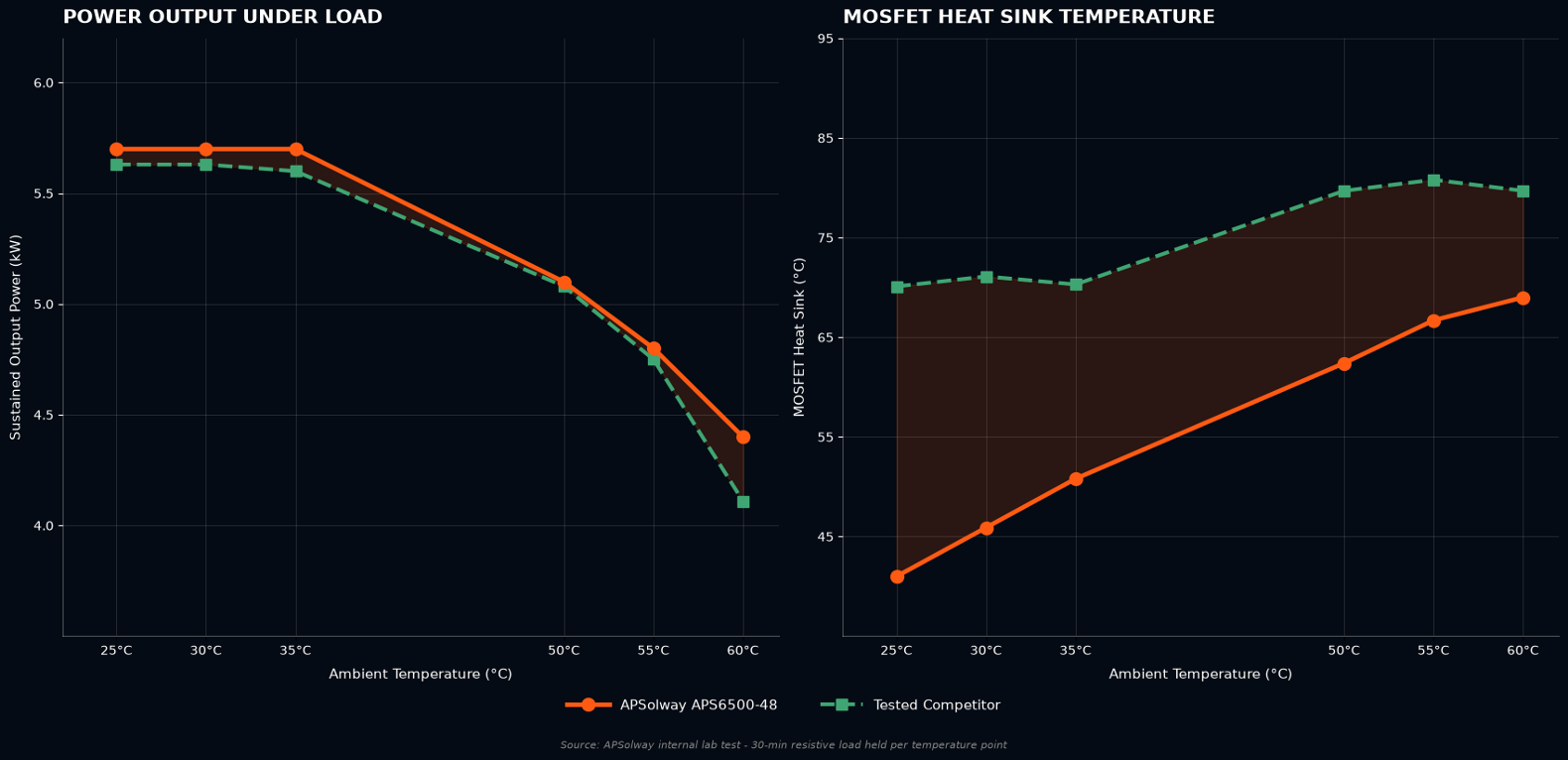

APS6500 power output and MOSFET heat sink temperature test results from 25 to 60 degrees CelsiusOPEN FULL SIZE ↗
02Extreme Weather ResistanceLayered protection addresses dust, rain and humidity in real installation environments.VIEW VALIDATION ＋
IMAGE + TEXT

Validation image + evidence notes

Four physical protection layers work together to reduce exposure to moisture and fine dust in demanding installations.

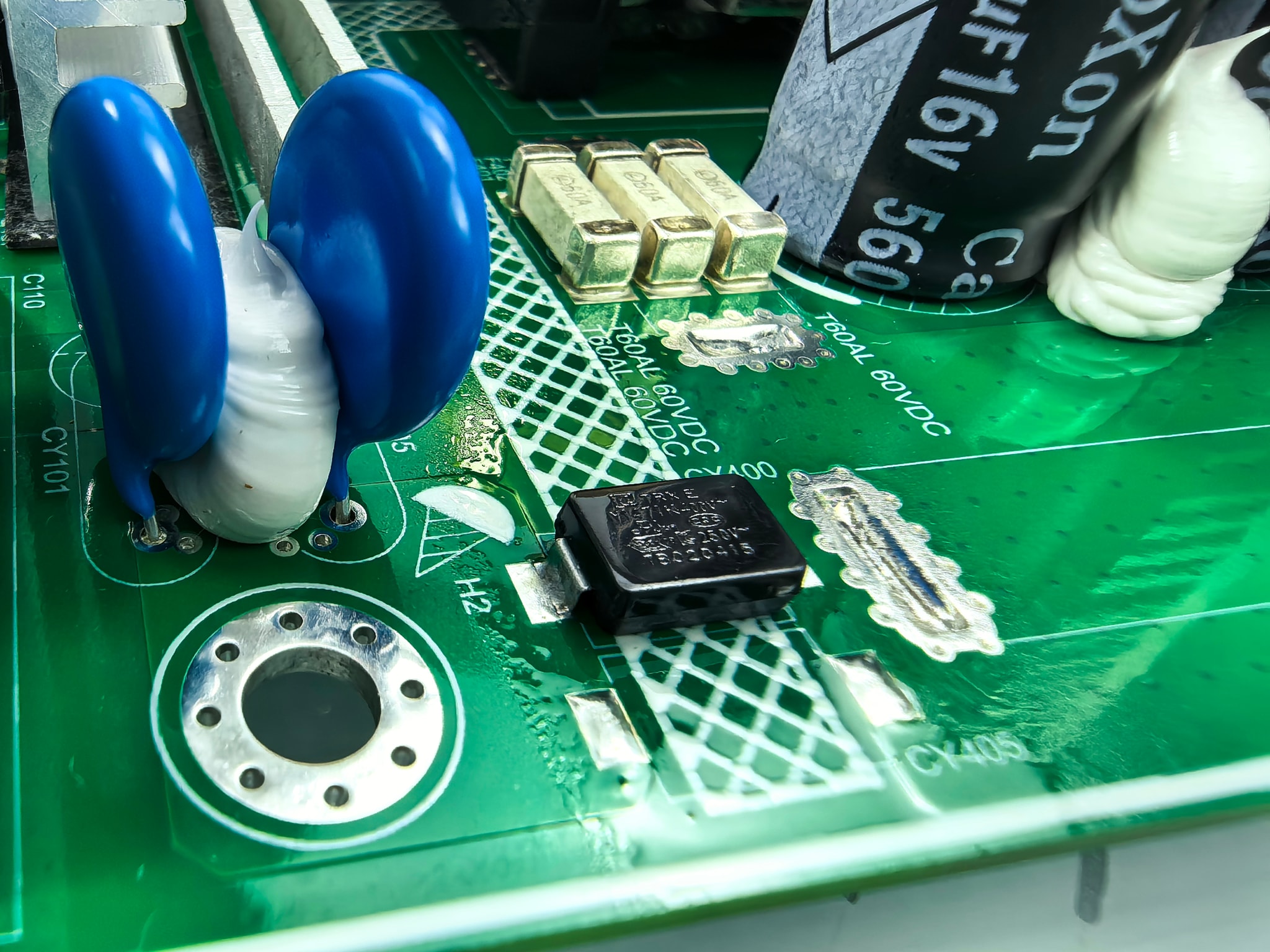

Close-up of conformal coating applied to an inverter circuit board01
80 μm
Conformal Coating

Moisture and dust barrier for the PCB.

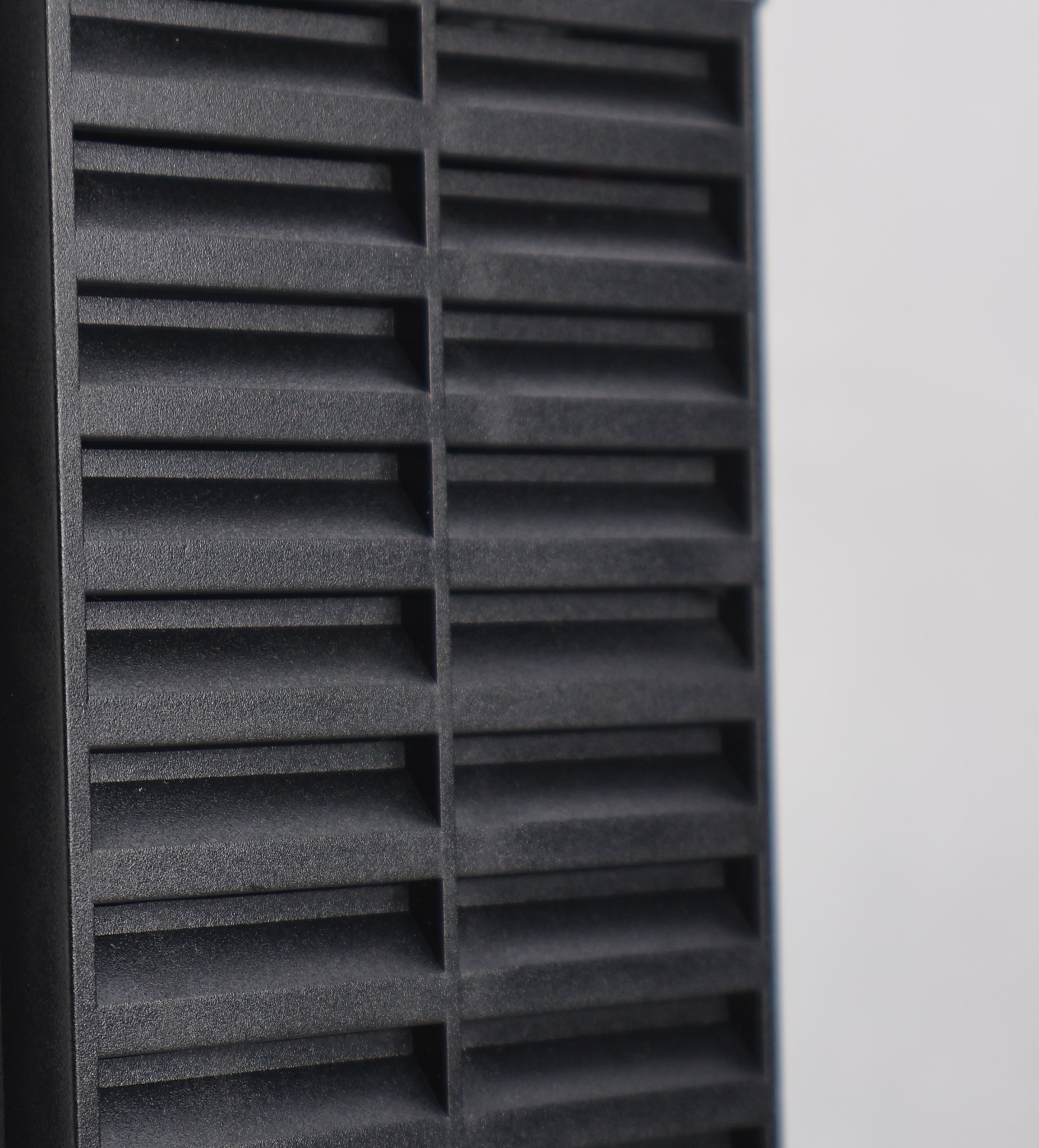

Close-up of the inverter ventilation baffle02
45° · < 0.1 mm
Precision Baffle

Angled path limits dust and moisture ingress.

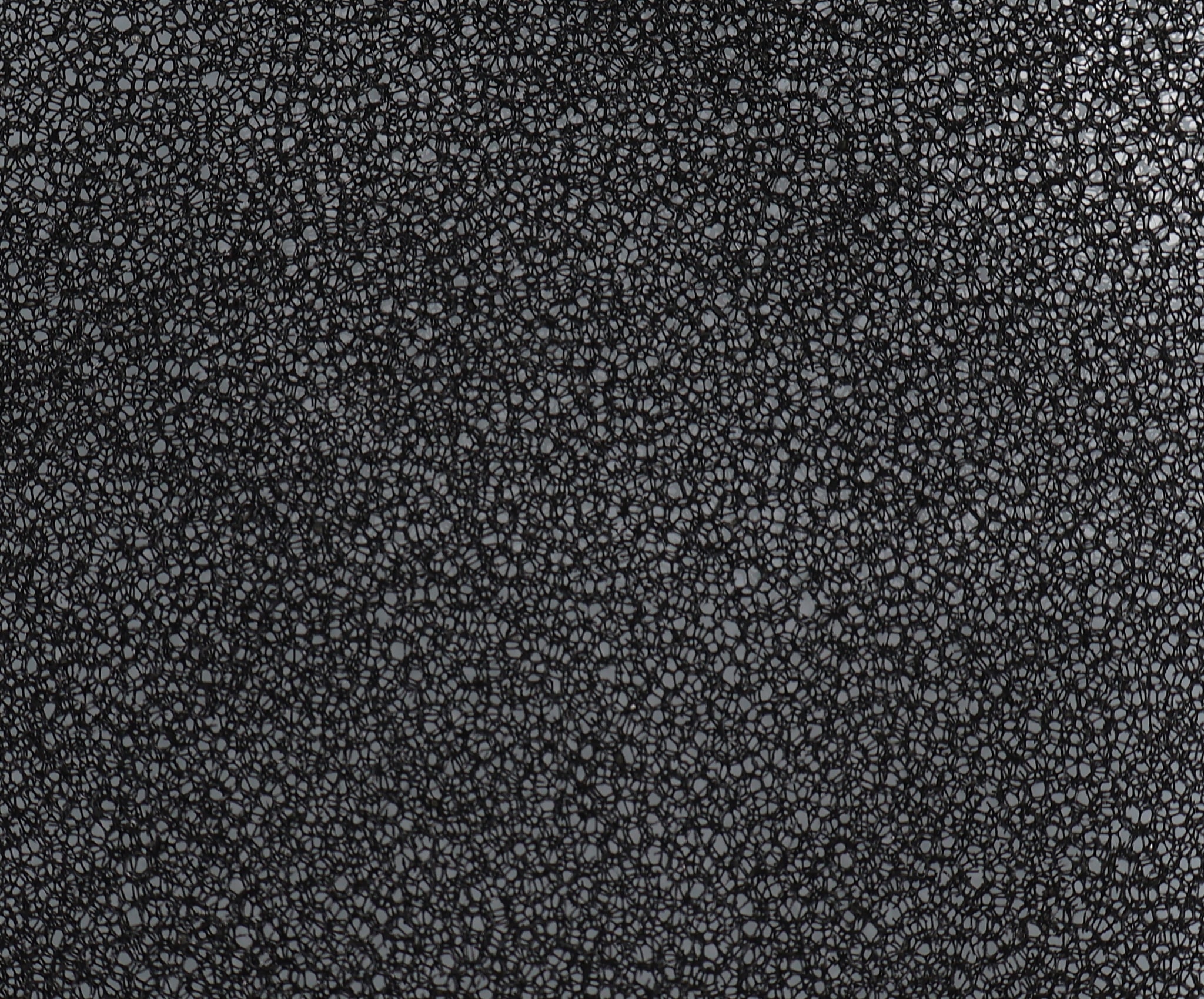

Macro photograph of the inverter dust-filter foam03
50 mesh · < 0.5 mm
Dust-Filter Foam

Intercepts fine particles before internal components.

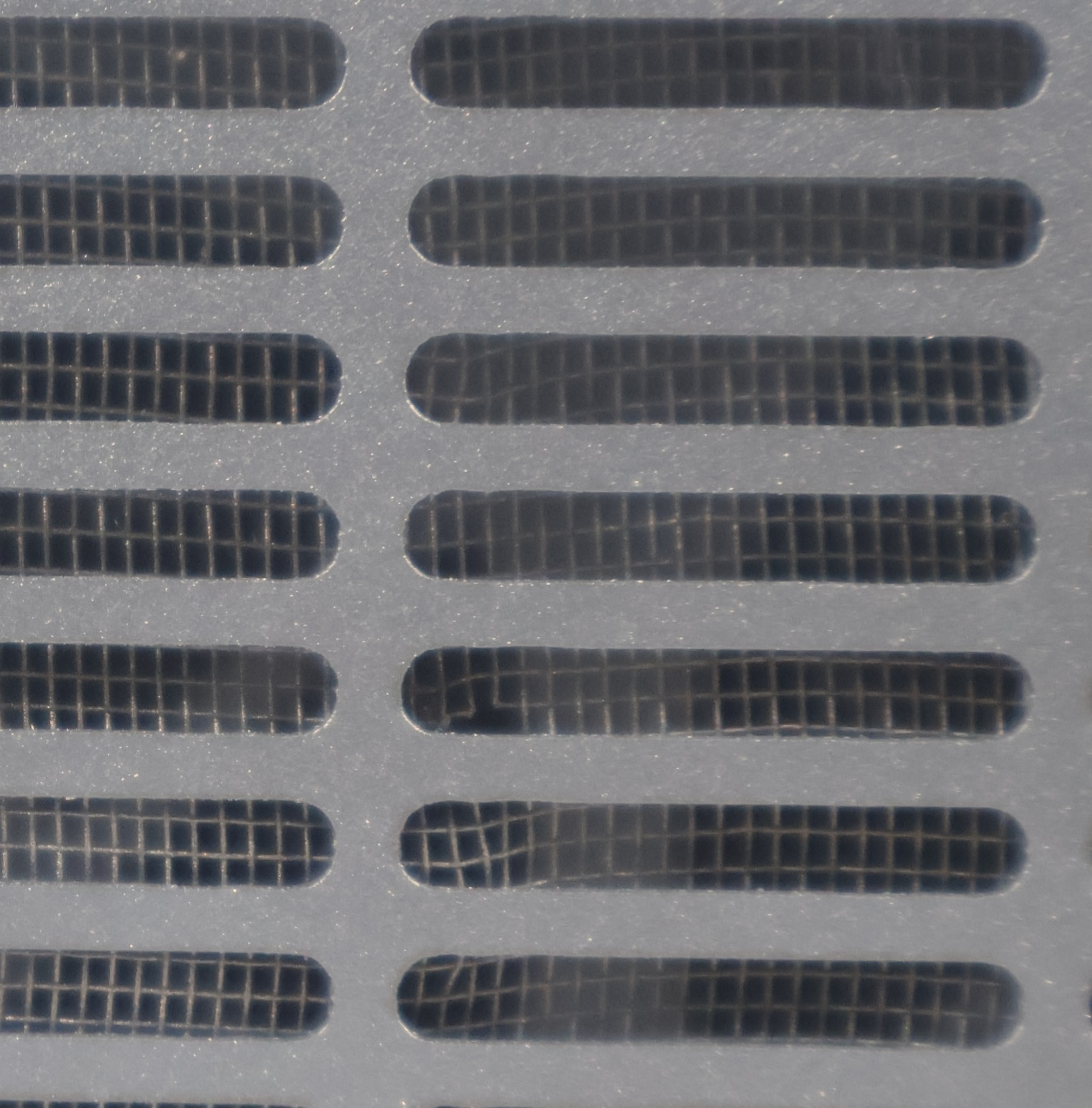

Protected ventilation grid outlet on the inverter enclosure04
PROTECTED OUTLET
Protected Grid Outlet

Recessed grid protects the ventilation outlet.

03Triple-Side Surge ProtectionMOV + fuse protection is applied on PV input, AC input and AC output.VIEW VALIDATION ＋
COMPONENT EVIDENCE

MOV varistor + MOSFET evidence

Verified component photographs identify the MOV varistors and power MOSFET devices used in the protection architecture.

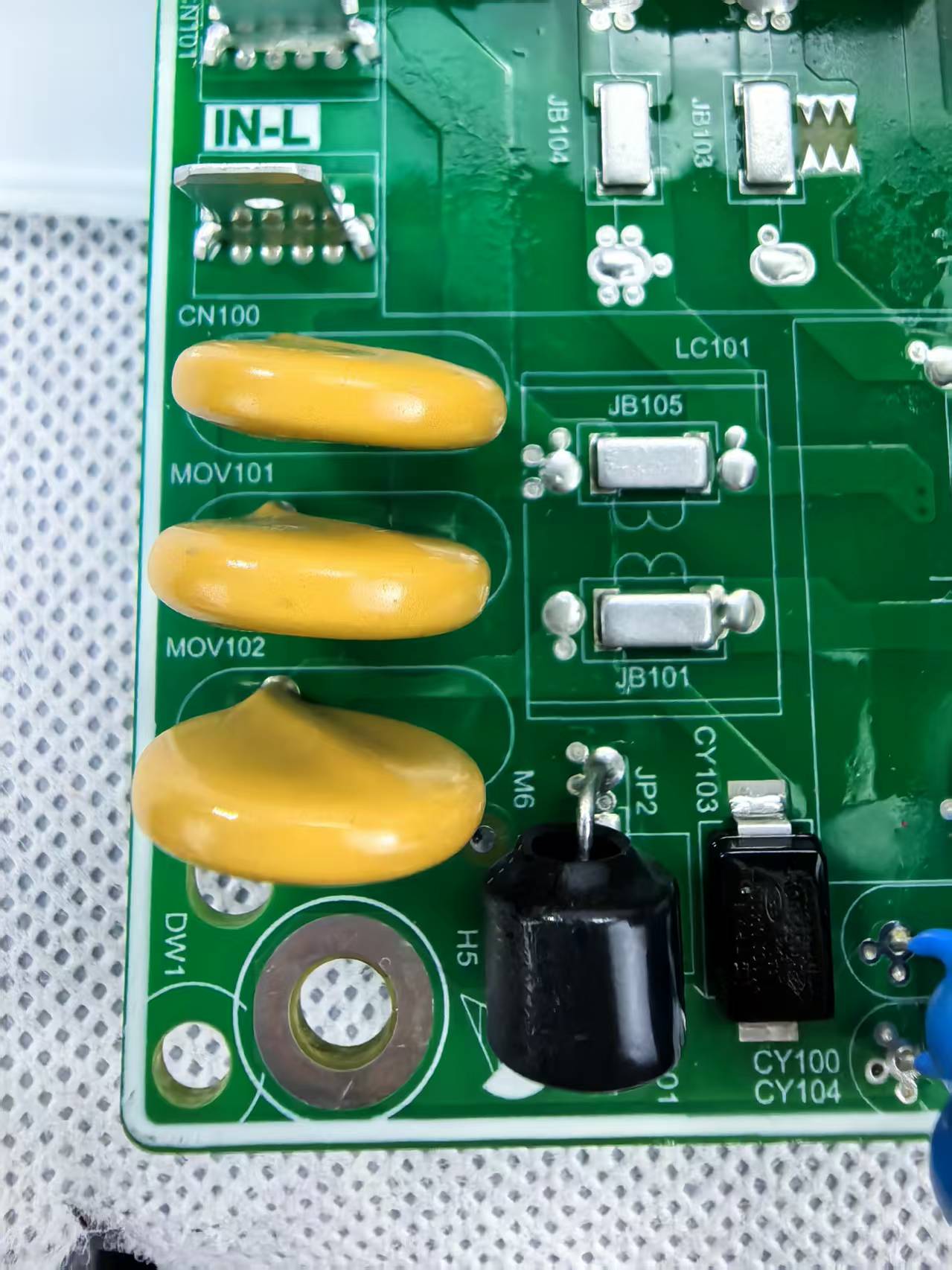

Close-up of MOV varistors on an APSolway inverter circuit board
01 · PROTECTION COMPONENTMOV Varistor

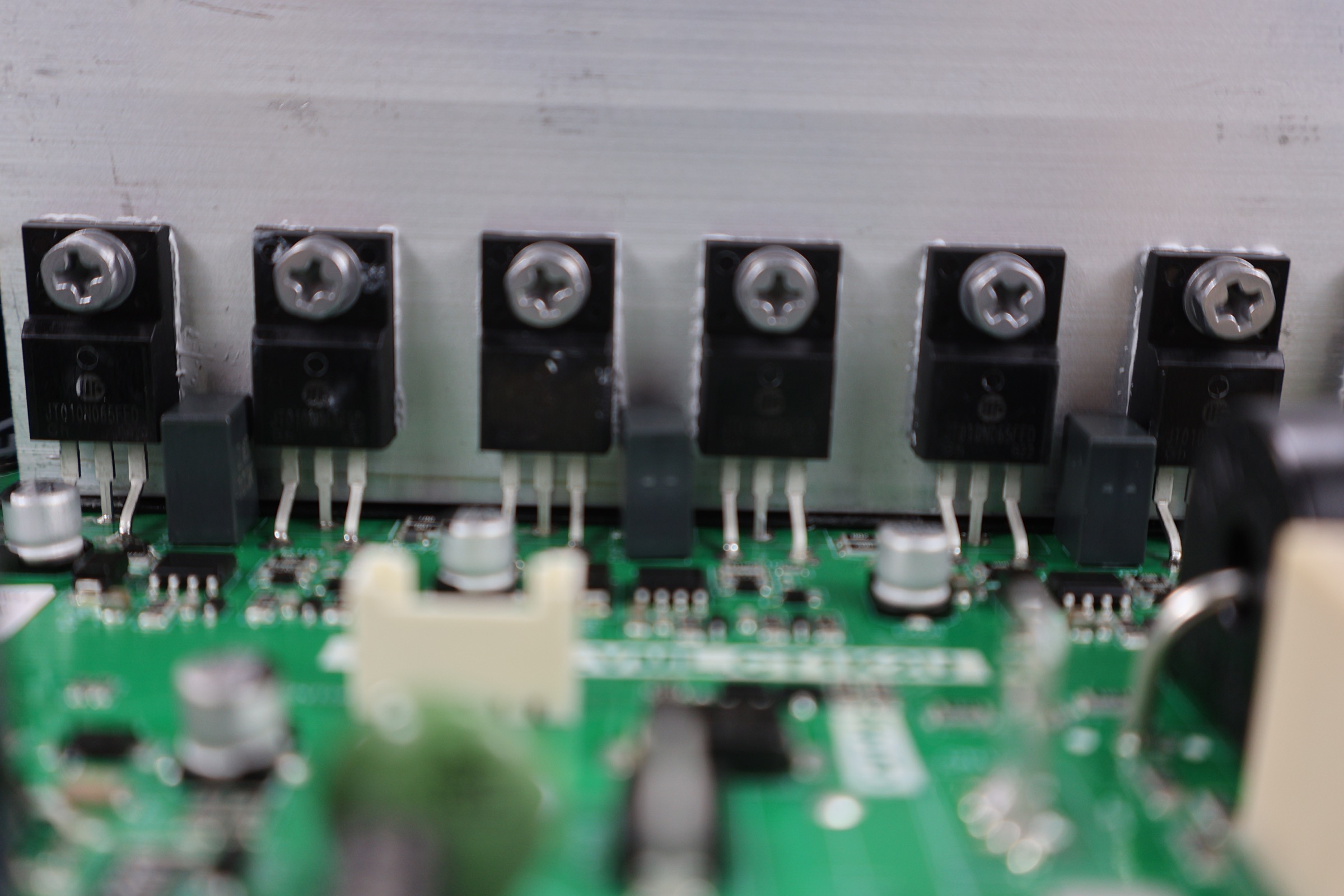

Close-up of power MOSFET devices mounted on an APSolway inverter heat sink
02 · POWER COMPONENTPower MOSFET
04Sustained Load CapabilityThe platform is validated for stable load carrying across its rated operating range.VIEW VALIDATION ＋
OVERLOAD CAPACITY TEST

Sustained-load comparison

Supplied test results compare APSolway sustained overload support with a competitor across three load ranges.

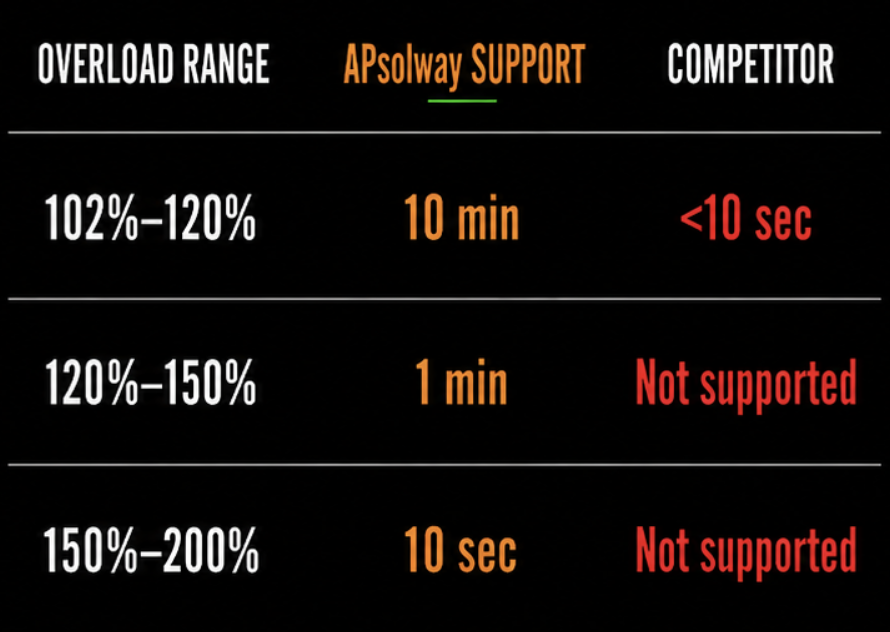

Overload capacity table showing APSolway support duration and competitor results across three overload rangesOPEN FULL SIZE ↗
