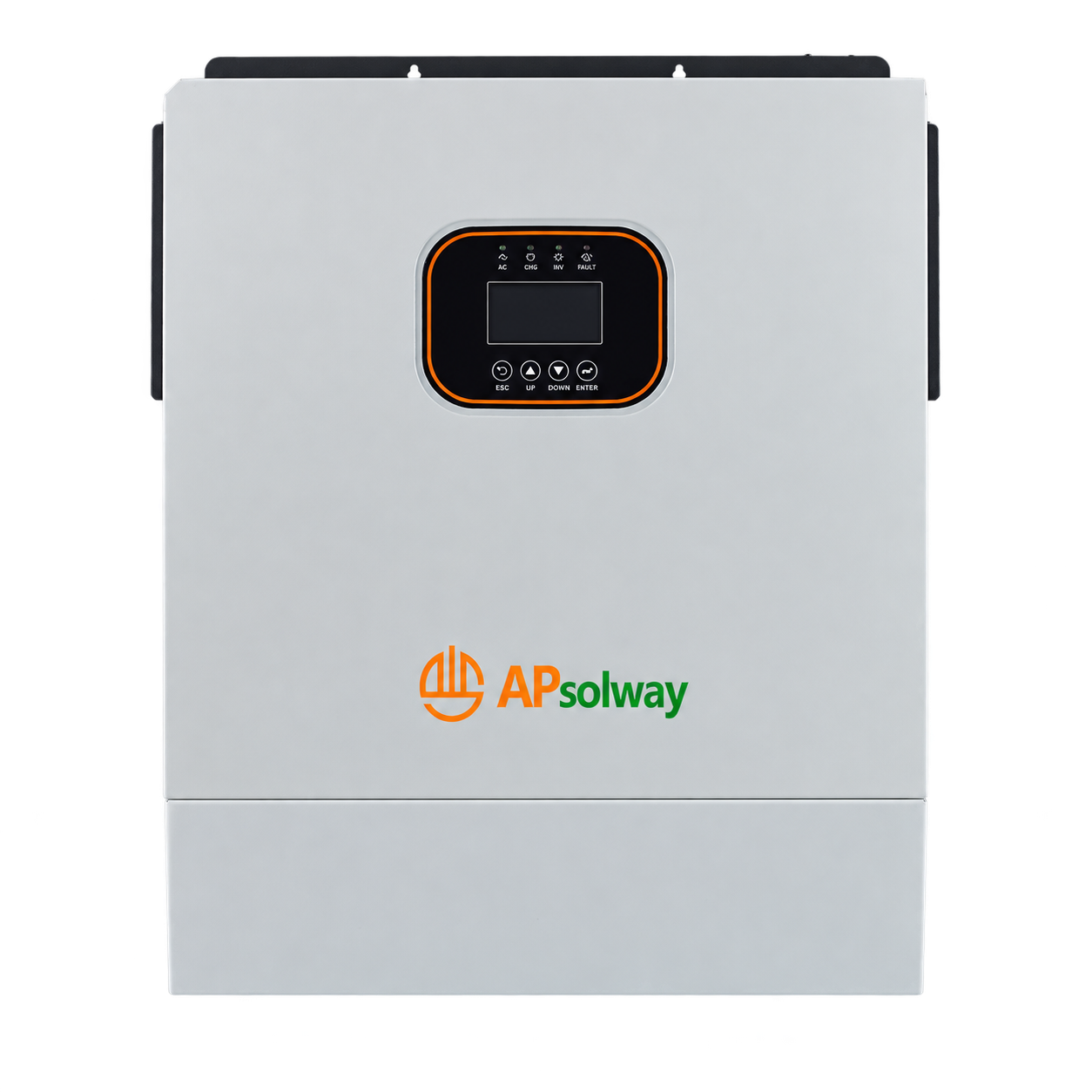

SELECTED MODEL

WPS12000-48

Verified product views · IP54 protection architecture and model data.

WPS SERIES · 12 kW · 48 V

PRODUCT VIEW GALLERY

See every angle.

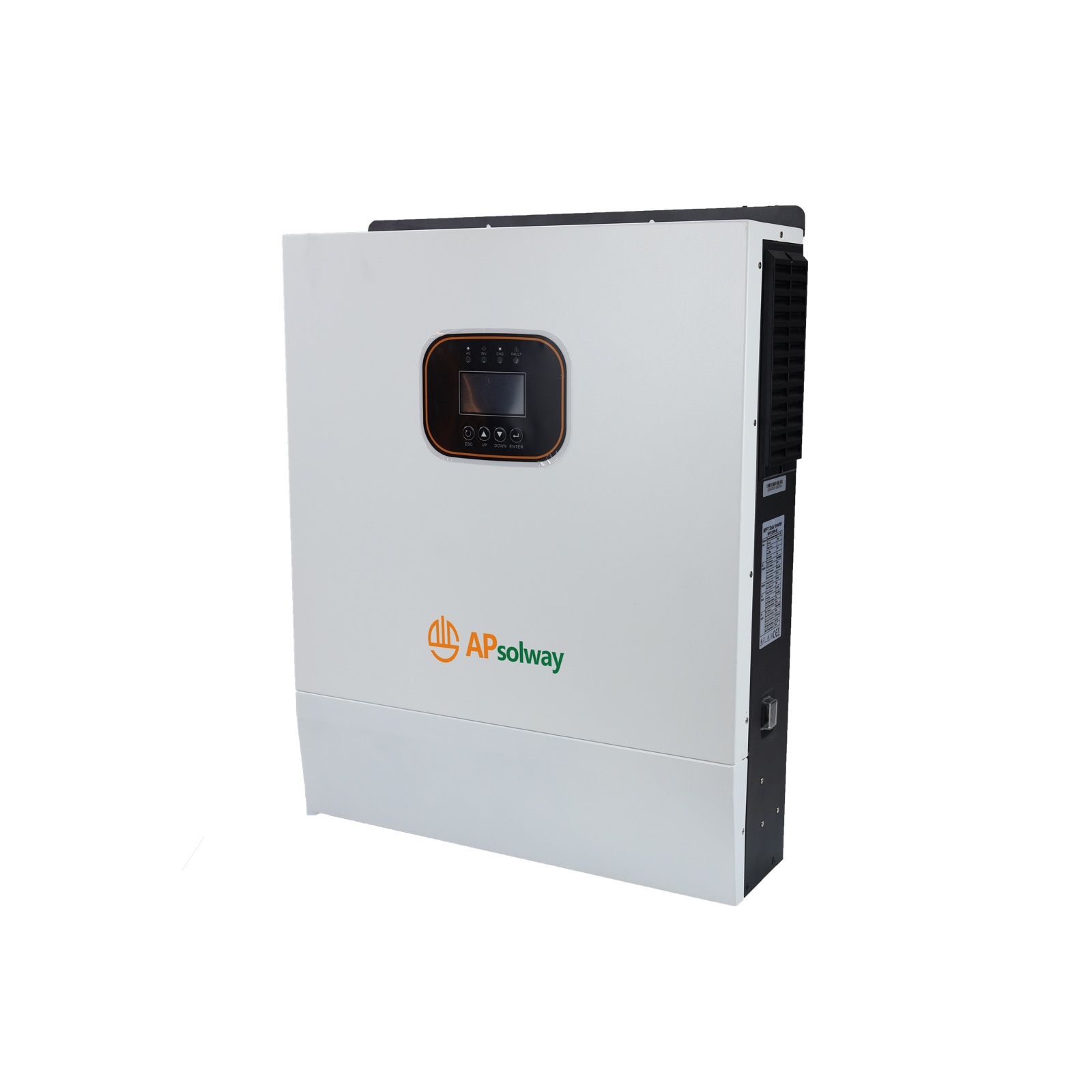

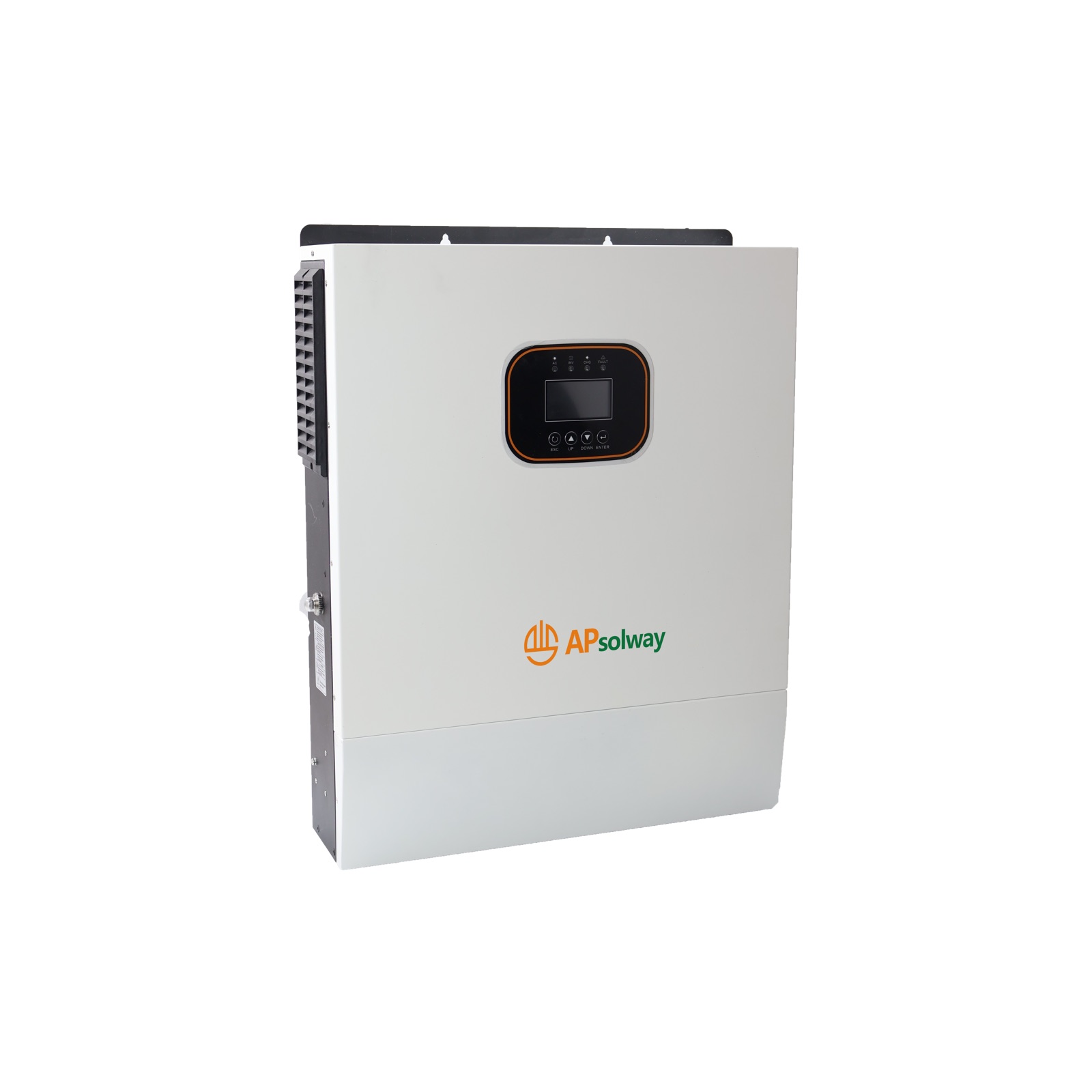

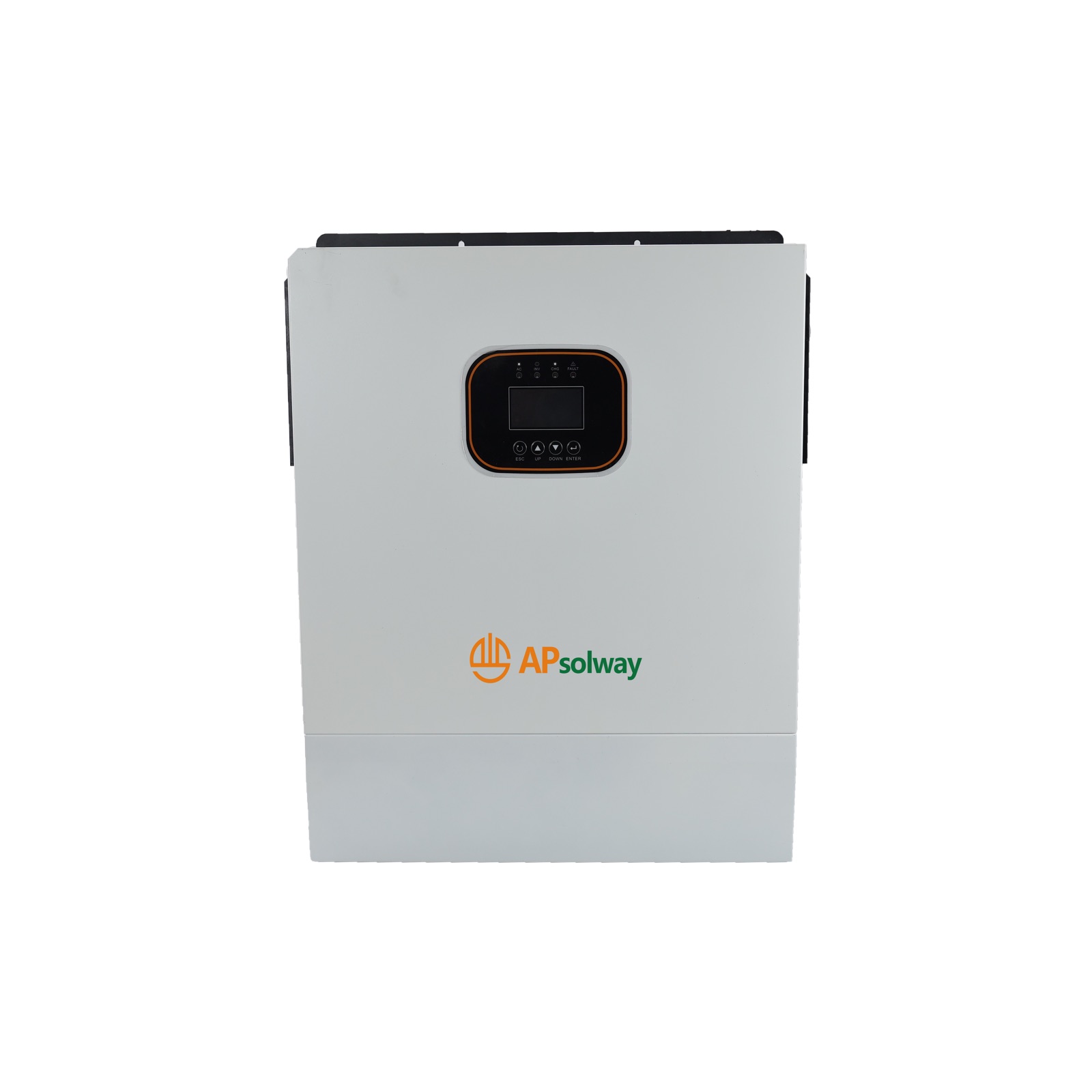

3 detailed views of the WPS12000-48 enclosure, connections and profile.

MODEL-SPECIFIC TECHNICAL DATA

Configured to the corresponding WPS power platform; confirm final order data with the applicable datasheet.

Parameter	WPS12000-48
AC Input
Rated input voltage (VAC)	220 / 230 / 240; L + N + PE
Voltage range (VAC)	170–280 ±3 (normal mode); 170–280 ±3 (UPS mode)
Frequency	50 / 60 Hz (auto-adaptive)
AC Output
Rated capacity	12 kW
Surge power	24 kVA
Voltage	220 / 230 / 240 VAC
Power factor	1
Frequency	50 / 60 Hz ±0.1%
Switch time	10 ms (APP/UPS mode) / 20 ms (GEN mode)
Waveform	Pure sine wave
Overload capacity (battery mode)	1 min @ 102%–125% load; 10 s @ >125% load
Maximum efficiency (battery mode)	94% @ 48 VDC
Parallel operation	Supported
Charger (PV / AC)
Solar charger type	Dual MPPT
Maximum PV input current / power	One MPPT: 27 A / 9 kW; two MPPTs: 27 A per MPPT, 15 kW total
MPPT operating range	60–450 VDC
Maximum PV open-circuit voltage	500 VDC
Maximum PV charge current	160 A
Maximum AC charge current	160 A
Maximum charge current (PV + AC)	160 A
Battery
Rated voltage	48 VDC
Floating charge voltage	54 VDC
Overcharge protection	60 VDC
Battery type	Lithium and lead-acid
Interface
HMI	LCD / RGB
Communication	RS485 / CAN / RS232; semi-potted control board
Monitoring	Wi-Fi (built-in)
General Data
Ingress protection	IP54
Warranty	2 years
Operating temperature	−10°C to 60°C
Relative humidity	5%–95%, non-condensing
Storage temperature	−15°C to 60°C
Net weight	14.5 kg
Dimensions (W × H × D)	480 × 410 × 120 mm
Maximum operating altitude	4,000 m; derating above 1,000 m

WPS protection architecture, product views and configured WPS12000-48 platform data.
