SELECTED MODEL
VN1600
Original catalogue artwork · values and system layout are preserved.
MICRO SERIES · VN Series
VN1600
- Rated output
- 500 / 1000 / 1600 product classes
- AC voltage
- See product documentation
- Maximum PV
- Module-level input
- Battery
- Not required
- Phase
- Distributed solar
- MPPT window
- Product-specific

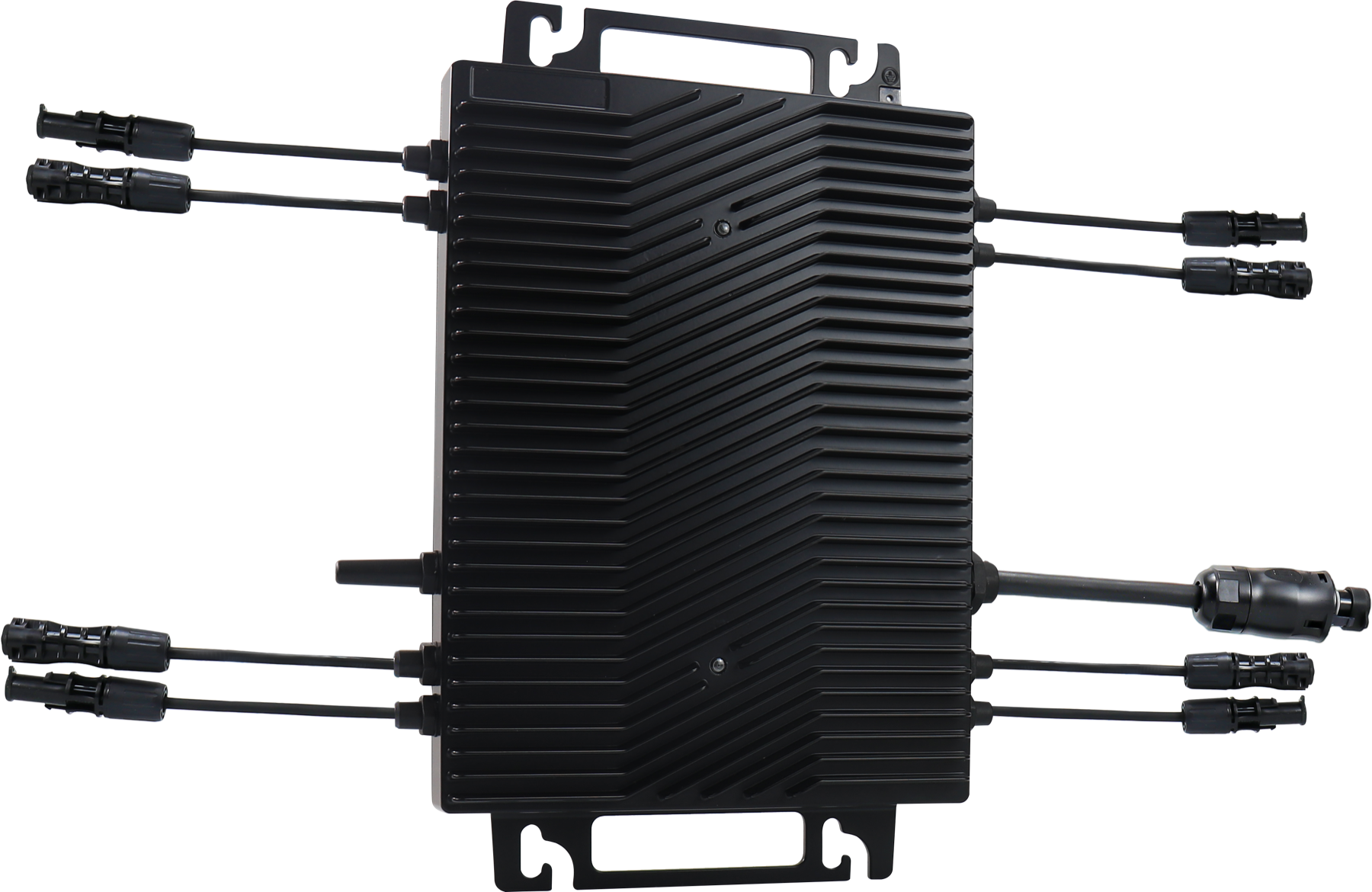

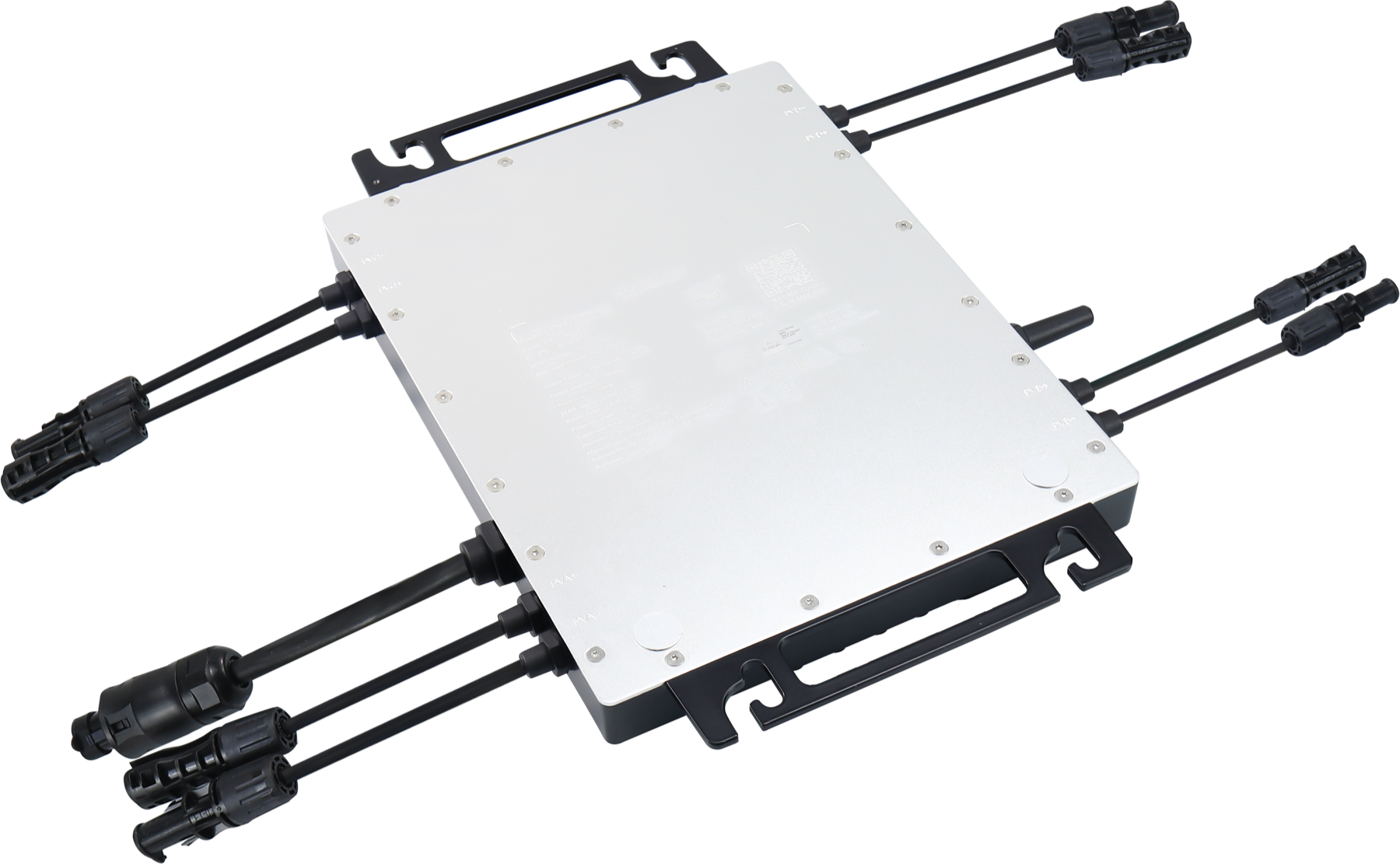

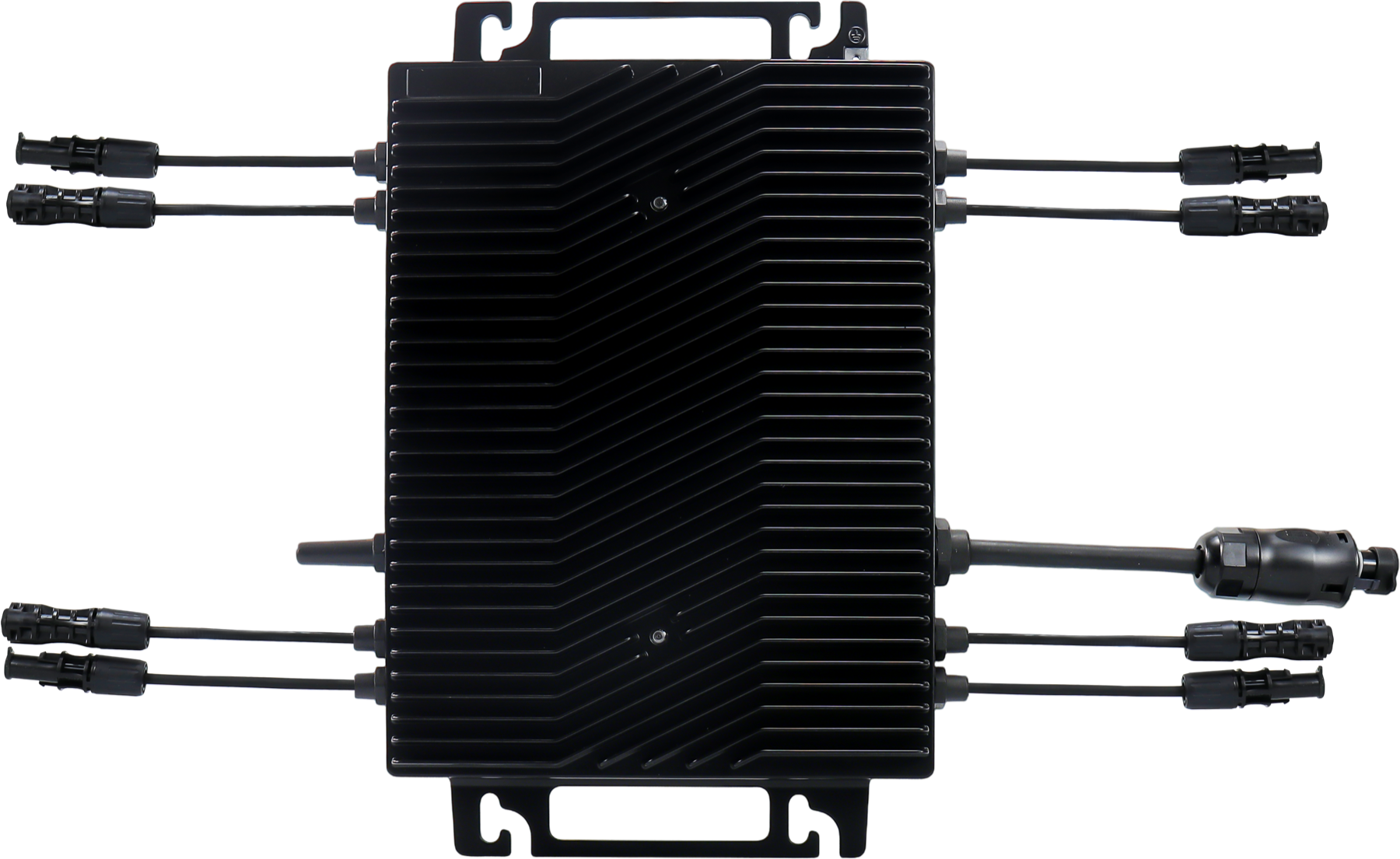

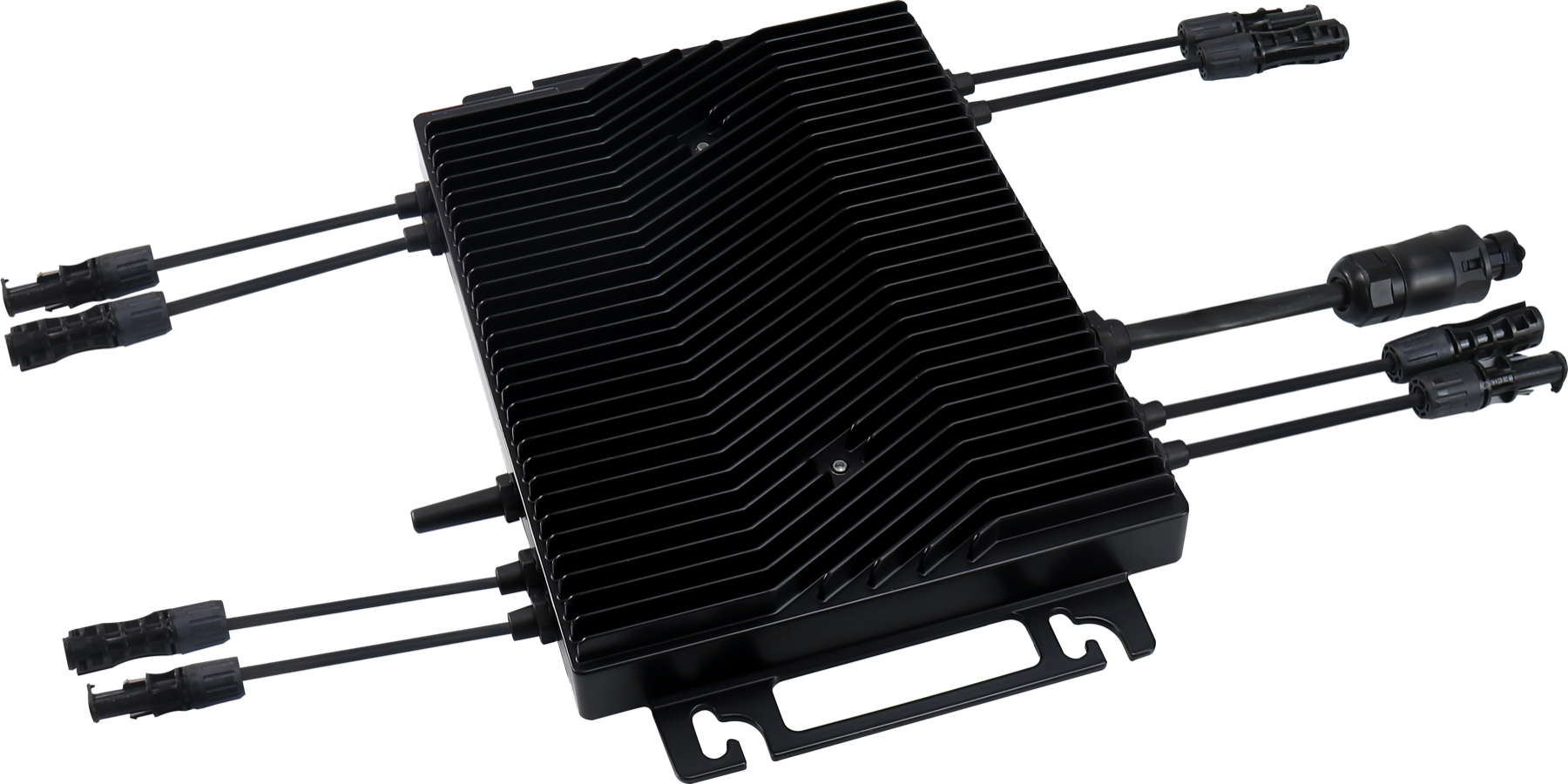

PRODUCT VIEW GALLERY
See every angle.
4 detailed views of the VN1600 enclosure, connections and profile.
↗
↗
↗MODEL-SPECIFIC TECHNICAL DATA
VN1600 specifications.
Extracted from the official product catalogue for this model only.
| Parameter | VN1600 |
|---|---|
| DC Input | |
| Platform | VN4T · 1600 W class |
| Recommended module power | (300–550 W) × 4 |
| Start-up voltage per input | 18 V |
| MPPT voltage range per input | 17.5–55 V |
| Maximum input voltage per input | 60 V |
| Maximum input current per input | 13.3 A |
| Maximum short-circuit current per input | 20 A |
| AC Output | |
| Maximum continuous output power | 1,600 VA |
| Nominal continuous output power | 1,600 W |
| Maximum output current | 6.96 A at 230 V |
| Nominal output voltage | 220 / 230 / 240 V · L / N / PE |
| Nominal frequency | 50 / 60 Hz |
| Power factor | >0.99 default; adjustable from 0.9 leading to 0.9 lagging |
| Maximum units per 10 AWG branch | 4 |
| Efficiency | |
| Peak inverter efficiency | 95.60% |
| Nominal MPPT efficiency | 99.90% |
| Night-time power consumption | <50 mW |
| Mechanical & Compliance | |
| Dimensions (W × H × D) | 380 × 232 × 42 mm |
| Protection grade | IP67 |
| Grid connection standards | VDE 4105 · VDE 0124 · EN 50549 |
| Regulatory | IEC / EN 62109-1/2 |
| EMC | EN 61000-6-1/-3 |
| Cybersecurity | EN 18031-1:2024 · EN 18031-2:2024 |
