APS3600-24

Original catalogue artwork · values and system layout are preserved.

APS SERIES · 3.6 / 5 kW

PRODUCT VIEW GALLERY

See every angle.

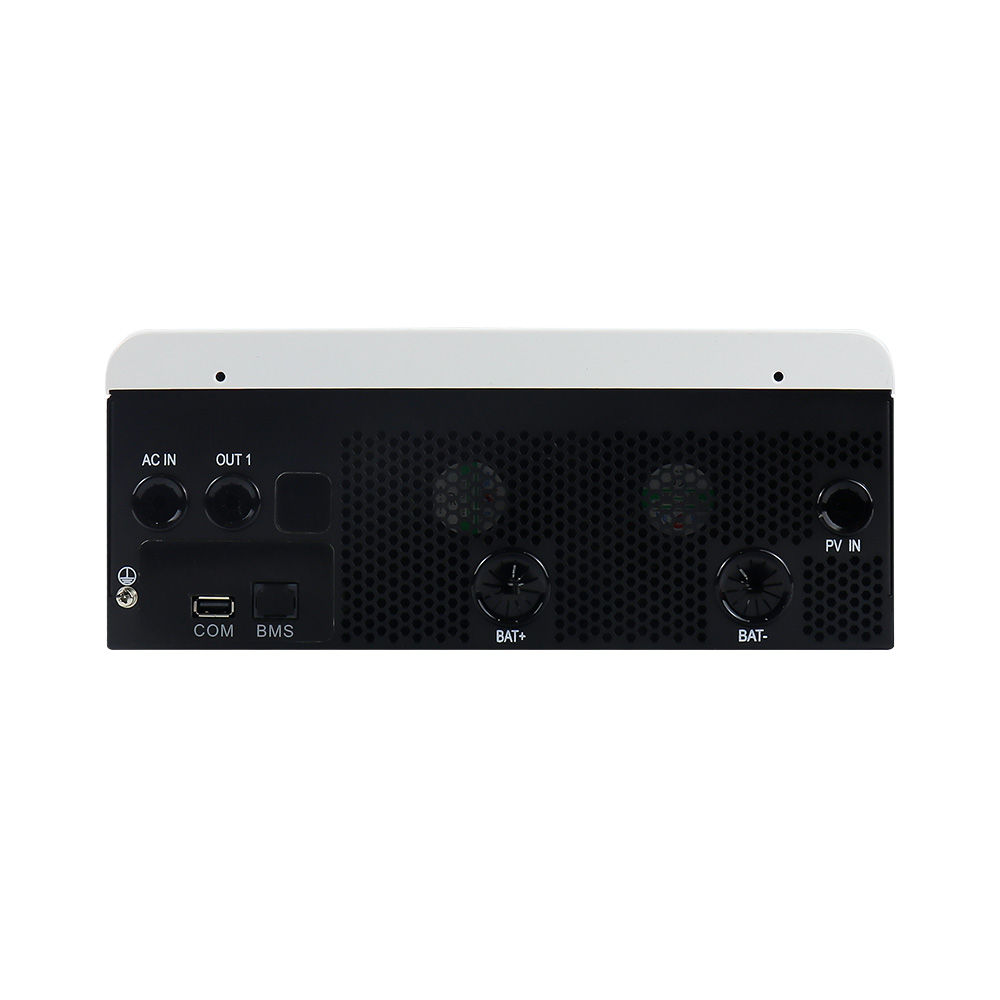

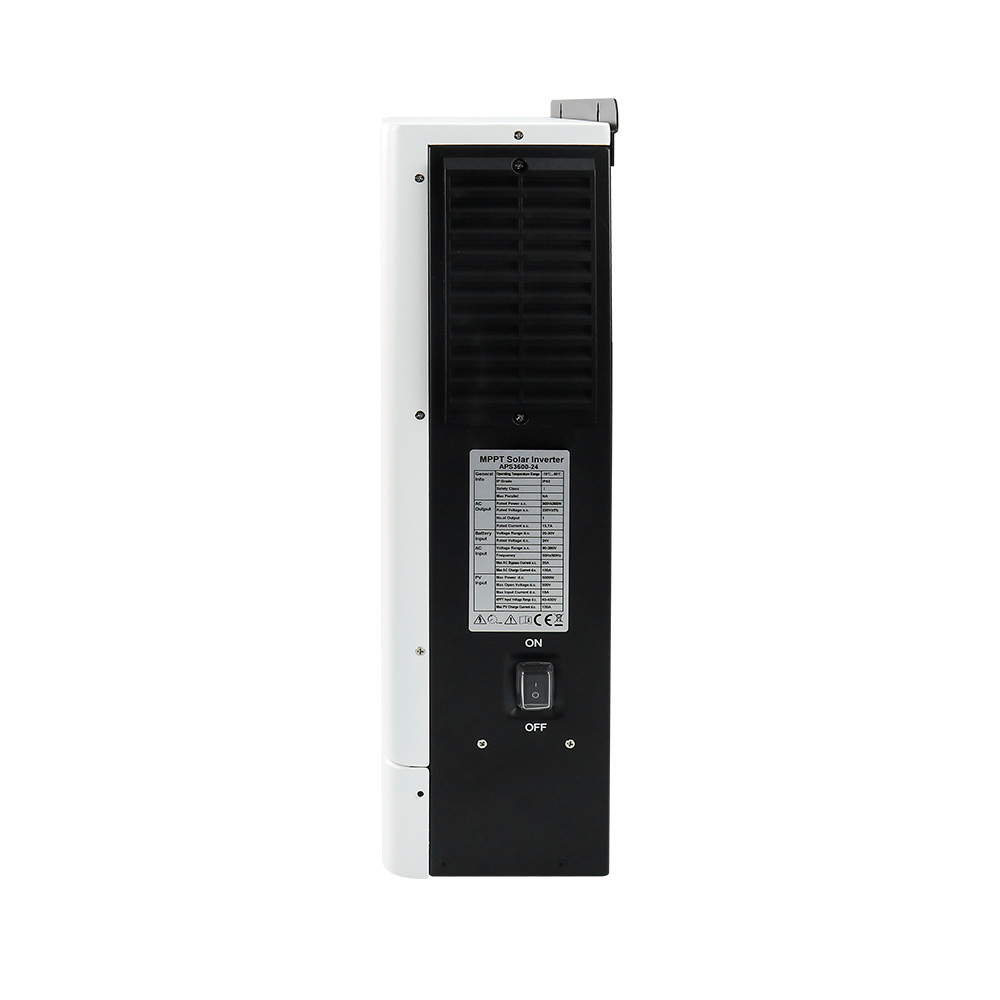

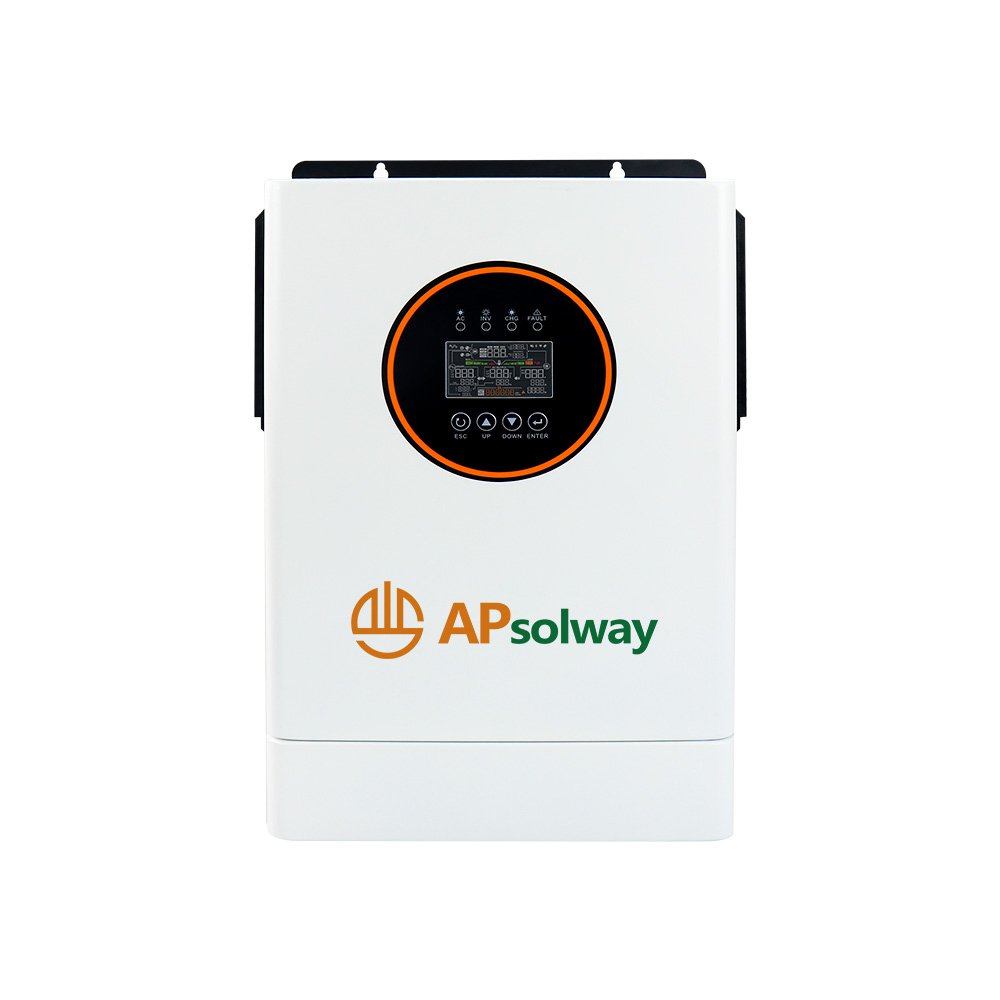

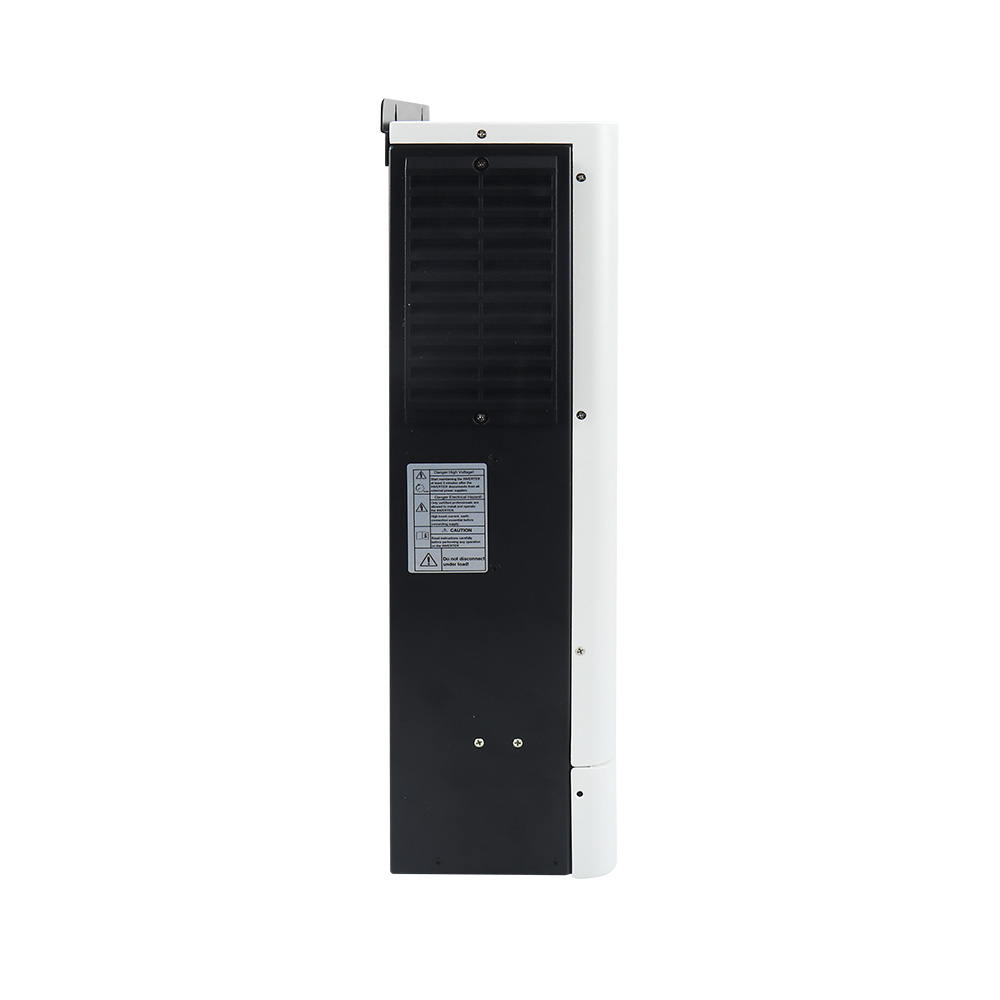

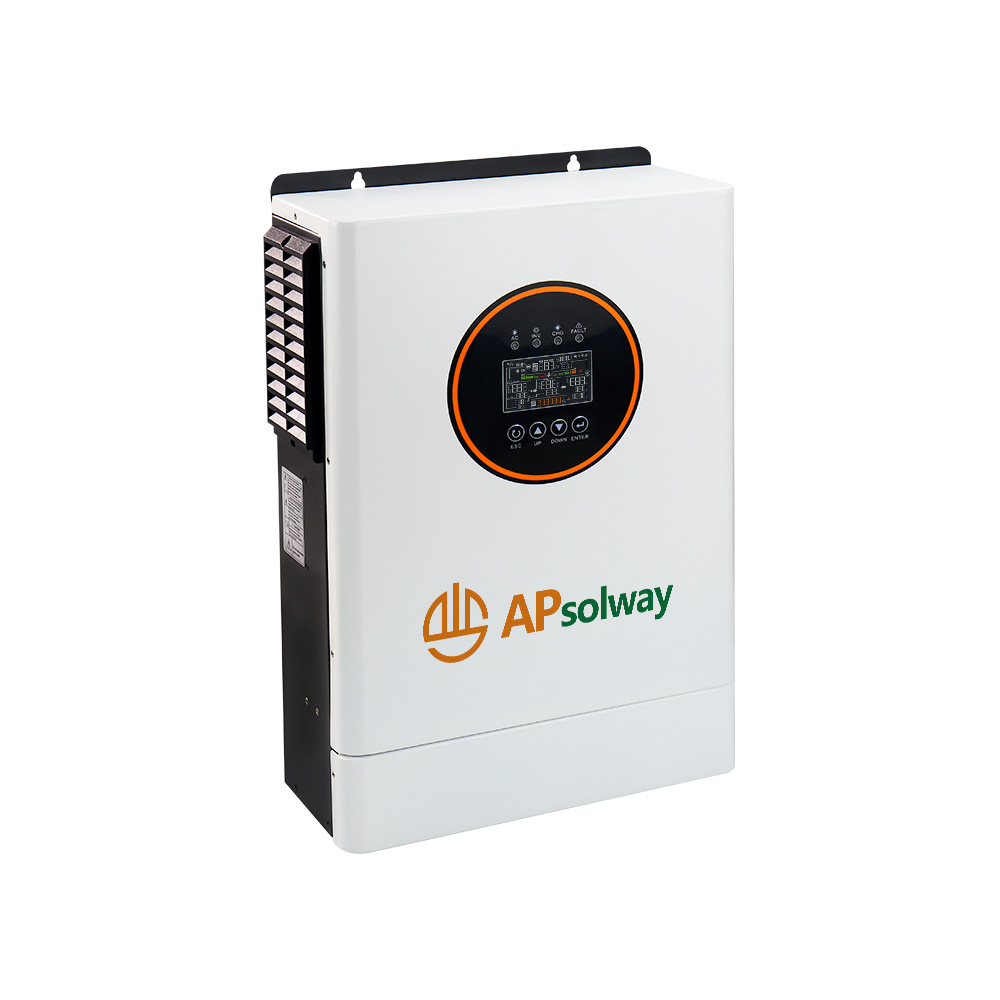

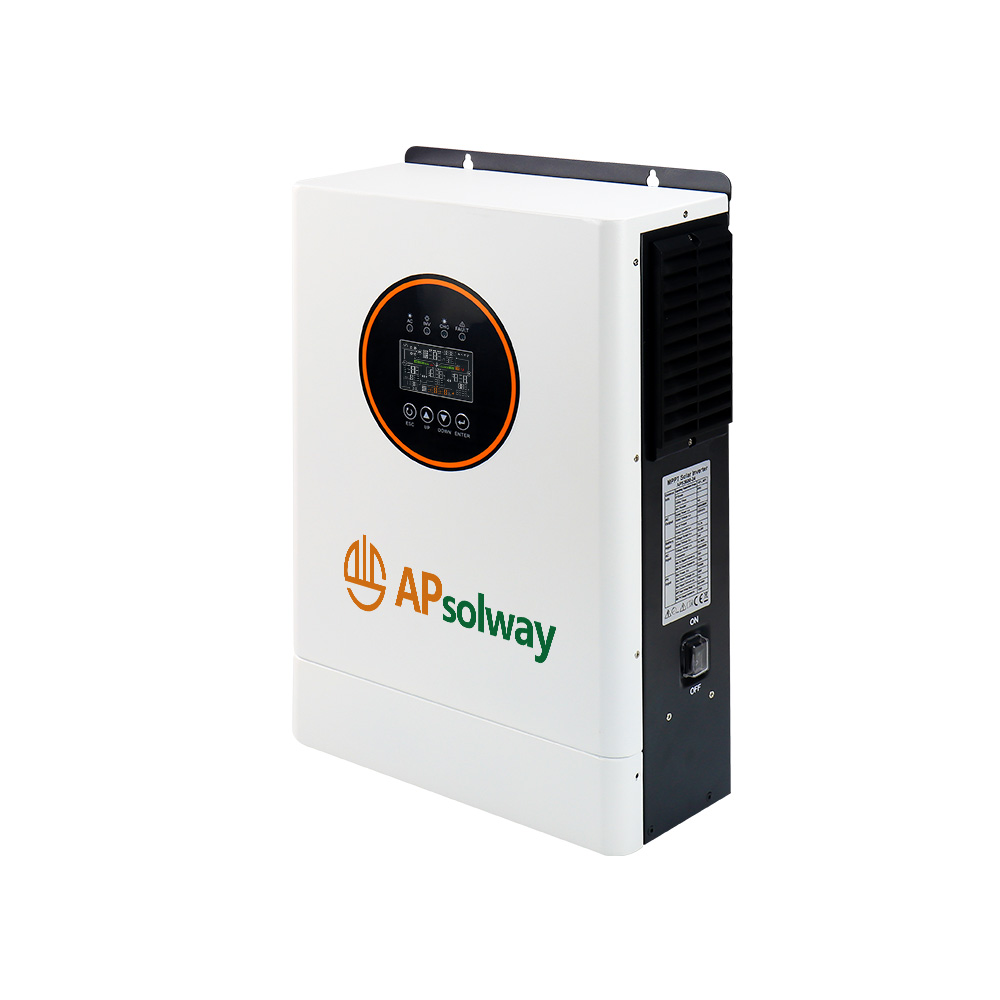

6 detailed views of the APS3600-24 enclosure, connections and profile.

MODEL-SPECIFIC TECHNICAL DATA

Extracted from the official product catalogue for this model only.

Parameter	APS3600-24
AC Input
Rated input voltage (VAC)	208 / 220 / 230 / 240; L + N + PE
Voltage range (VAC)	90–280 ±3 (normal mode); 170–280 ±3 (UPS mode)
Frequency	50 / 60 Hz (auto-adaptive)
AC Output
Rated capacity	3.6 kW
Surge power	7.2 kVA
Voltage	208 / 220 / 230 / 240 VAC
Power factor	1
Frequency	50 / 60 Hz ±0.1%
Switch time	10 ms (APP/UPS mode) / 20 ms (GEN mode)
Waveform	Pure sine wave
Overload capacity (battery mode)	60 s @ 102%–110% load; 10 s @ 110%–130%; 3 s @ 130%–150%; 0.2 s @ >150%
Maximum efficiency (battery mode)	92.7% @ 24 VDC
Parallel operation	Not supported
Charger (PV / AC)
Solar charger type	MPPT
Maximum PV input current / power	18 A / 5,000 W
MPPT operating range	40–450 VDC
Maximum PV open-circuit voltage	500 VDC
Maximum PV charge current	100 A
Maximum AC charge current	100 A
Maximum charge current (PV + AC)	100 A
Battery
Rated voltage	24 VDC
Floating charge voltage	27 VDC
Overcharge protection	30.5 VDC
Battery type	Lithium and lead-acid
Interface
HMI	LCD / RGB
Communication	RS485 / CAN / RS232
Monitoring	Wi-Fi (optional)
General Data
Ingress protection	IP43
Warranty	2 years
Operating temperature	−10°C to 60°C
Relative humidity	5%–95%, non-condensing
Storage temperature	−15°C to 60°C
Net weight	6.2 kg
Dimensions (W × H × D)	420 × 284 × 94 mm
Maximum operating altitude	4,000 m; derating above 1,000 m

System diagram, feature icons and model-specific data extracted from the official APS3600-24 catalogue page.
