SELECTED MODEL

APS1200-12

Original catalogue artwork · values and system layout are preserved.

APS SERIES · 1.2 / 2 kW

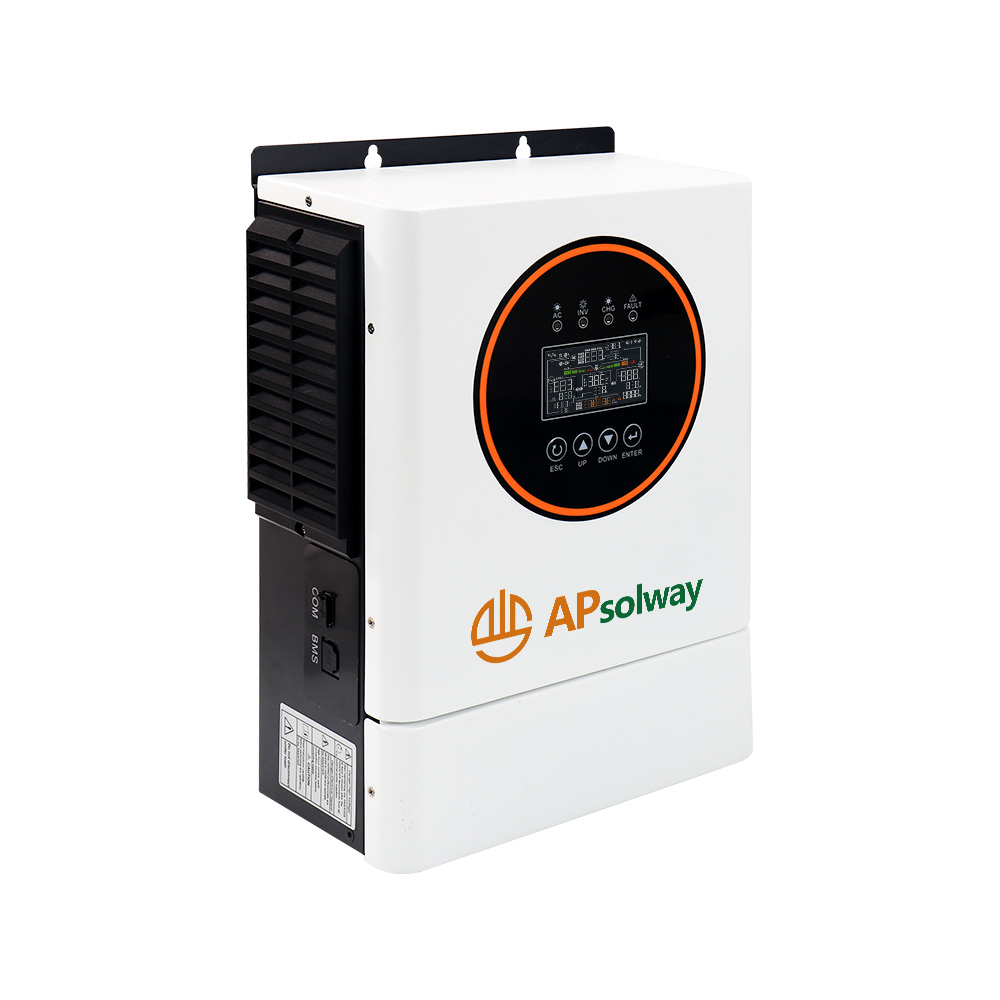

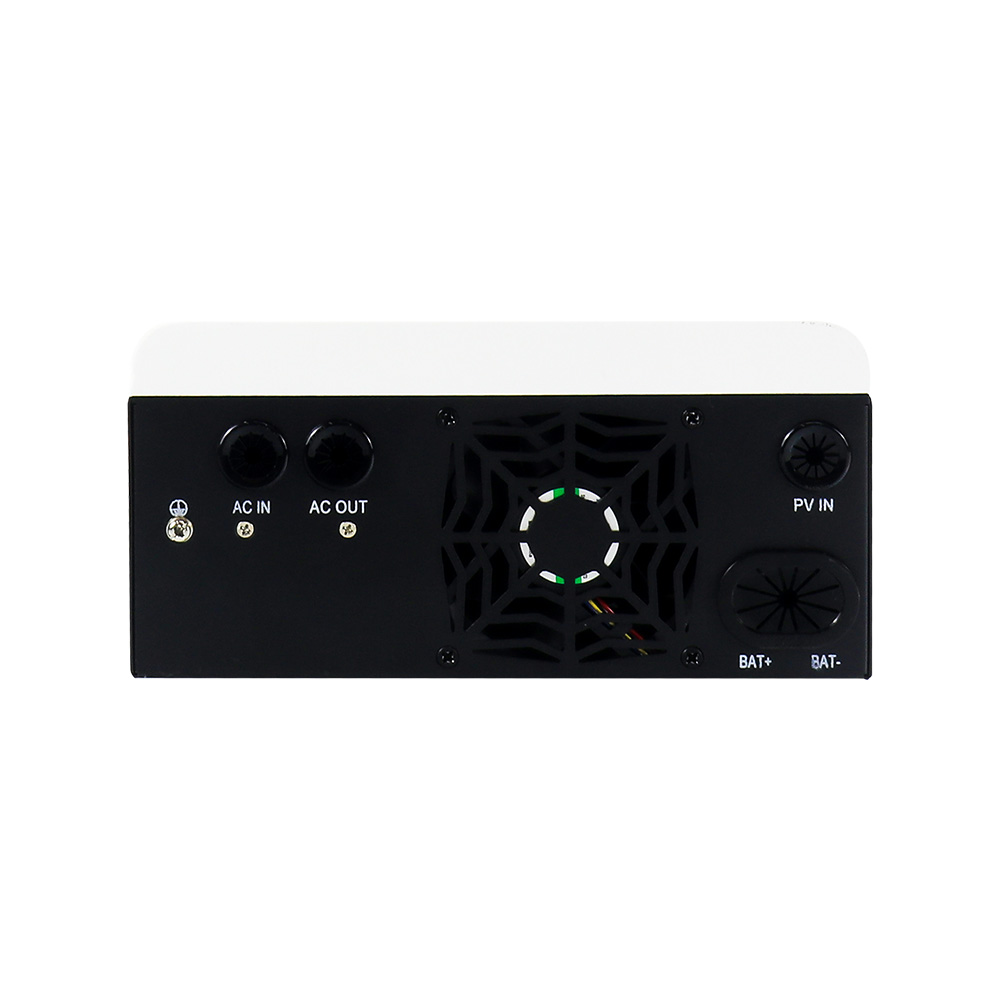

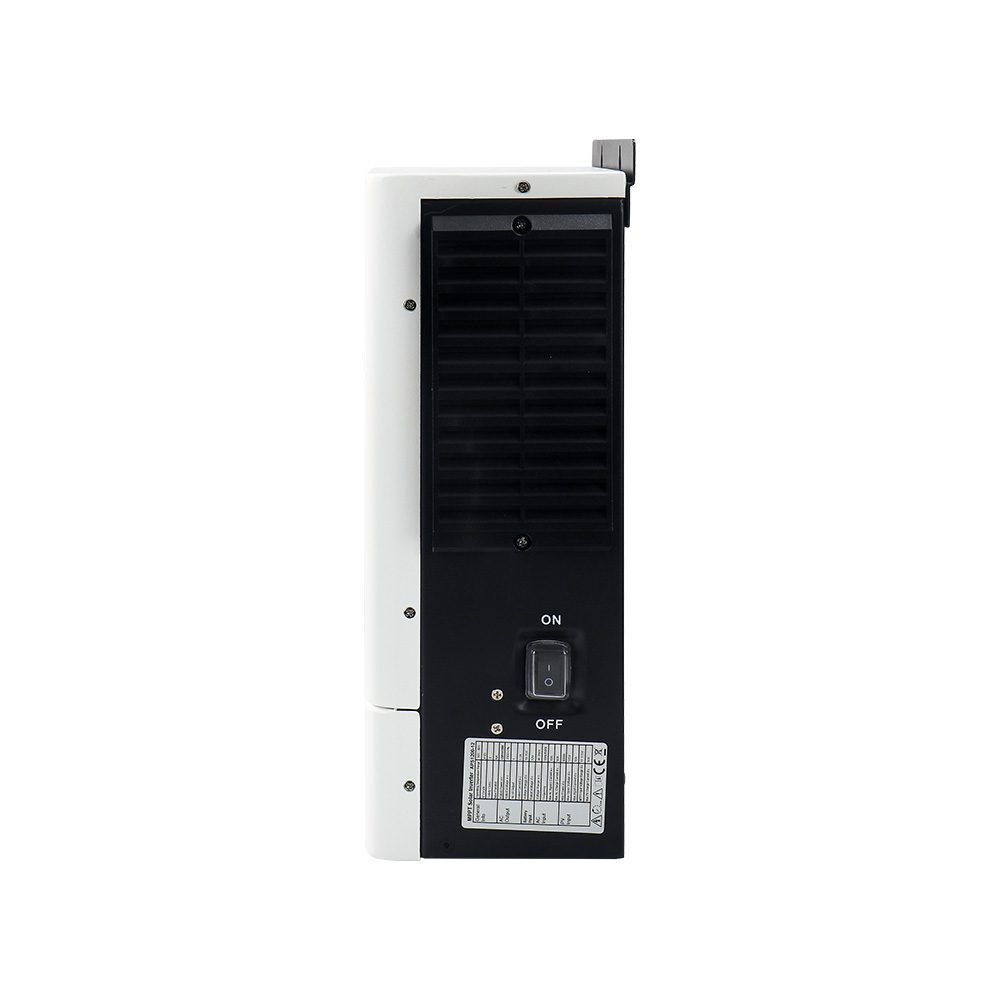

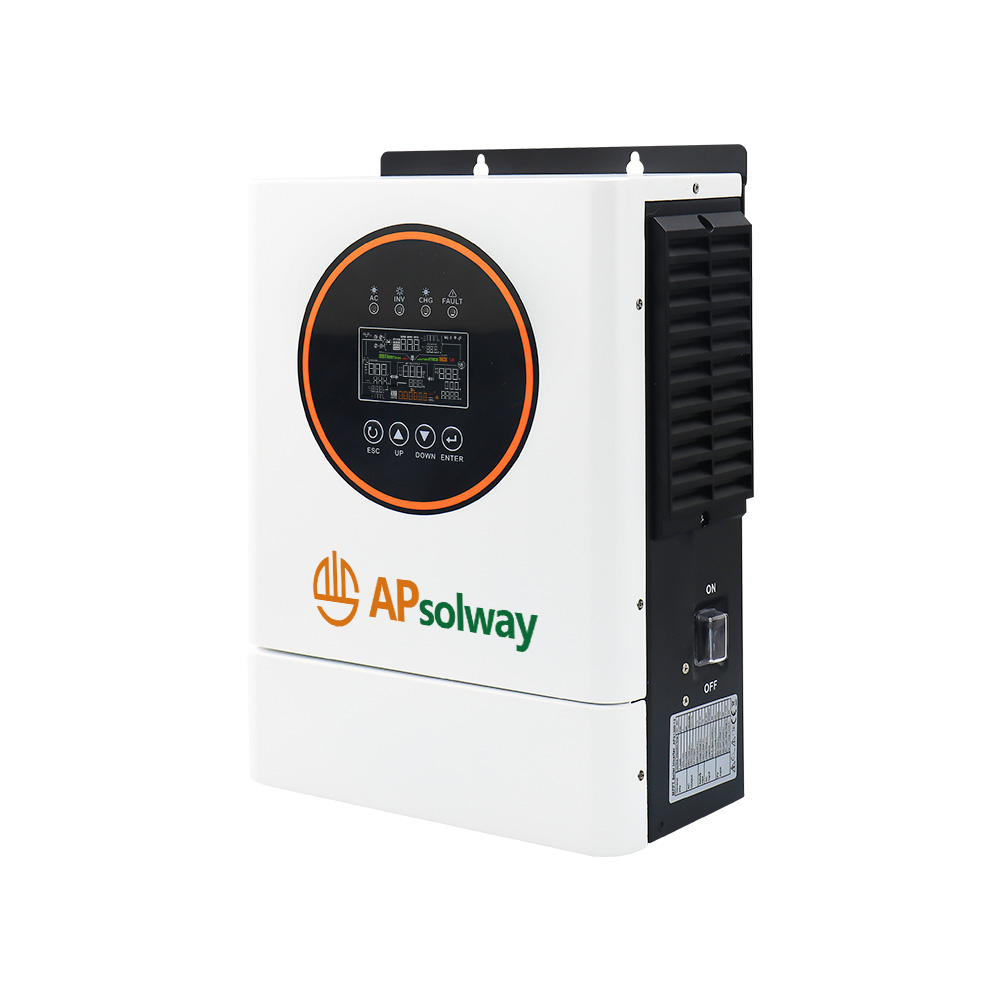

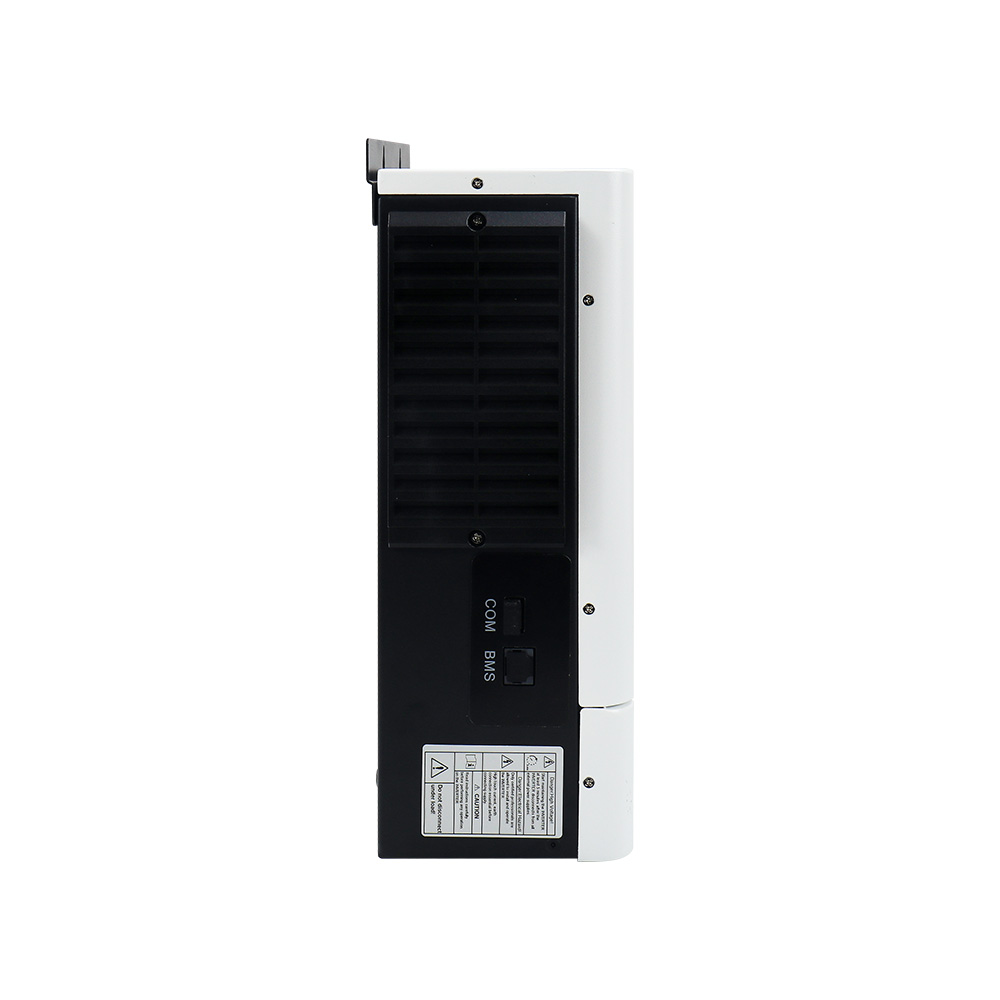

PRODUCT VIEW GALLERY

See every angle.

6 detailed views of the APS1200-12 enclosure, connections and profile.

MODEL-SPECIFIC TECHNICAL DATA

Extracted from the official product catalogue for this model only.

Parameter	APS1200-12
AC Input
Rated input voltage (VAC)	208 / 220 / 230 / 240; L + N + PE
Voltage range (VAC)	90–280 ±3 (normal mode); 170–280 ±3 (UPS mode)
Frequency	50 / 60 Hz (auto-adaptive)
AC Output
Rated capacity	1.2 kW
Surge power	2.4 kVA
Voltage	208 / 220 / 230 / 240 VAC
Power factor	1
Frequency	50 / 60 Hz ±0.1%
Switch time	10 ms (APP / UPS / GEN mode)
Waveform	Pure sine wave
Overload capacity (battery mode)	60 s @ 102%–120% load; 10 s @ 120%–200% load
Maximum efficiency (battery mode)	90% @ 12 VDC
Parallel operation	Not supported
Charger (PV / AC)
Solar charger type	MPPT
Maximum PV input current / power	18 A / 800 W
MPPT operating range	17–115 VDC
Maximum PV open-circuit voltage	115 VDC
Maximum PV charge current	50 A
Maximum AC charge current	50 A
Maximum charge current (PV + AC)	100 A
Battery
Rated voltage	12 VDC
Floating charge voltage	13.8 VDC
Overcharge protection	15 VDC
Battery type	Lithium and lead-acid
Interface
HMI	LCD / RGB
Communication	RS485 / CAN / RS232
Monitoring	Wi-Fi (optional)
General Data
Ingress protection	IP43
Warranty	2 years
Operating temperature	−10°C to 60°C
Relative humidity	5%–95%, non-condensing
Storage temperature	−15°C to 60°C
Net weight	3.5 kg
Dimensions (W × H × D)	347 × 236 × 91 mm
Maximum operating altitude	4,000 m; derating above 1,000 m

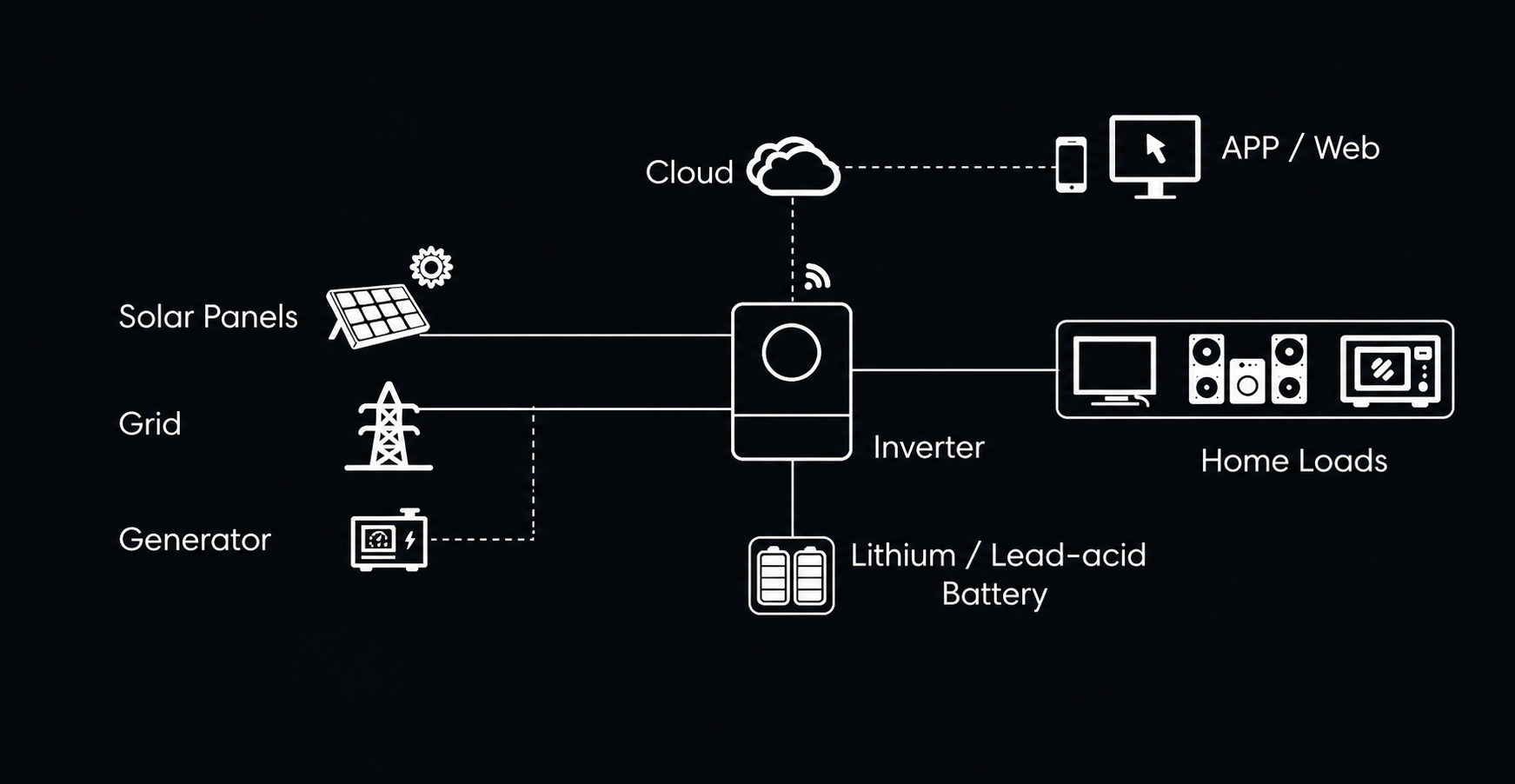

System diagram, feature icons and model-specific data extracted from the official APS1200-12 catalogue page.
